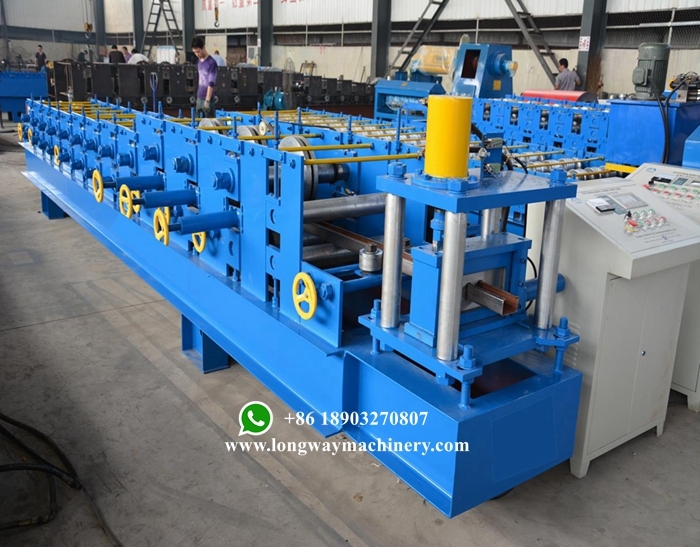

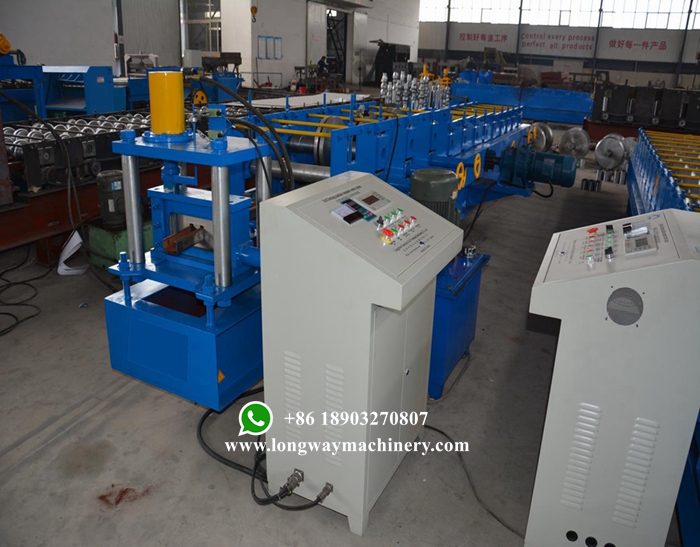

Manual Adjustment Steel C Profile Purlin Forming Machine

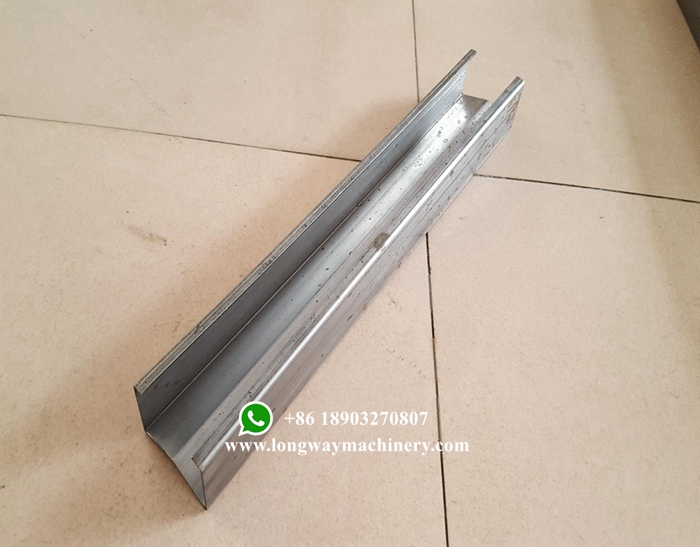

NAME OF GOODS:Galvanized Steel Profile C Channel Cold Roll Forming Machine
PROFILE:NORMAL SHEET
MODEL:C80-C300 purlin ROLL FORMING MACHINE
THICKNESS:1.5-3.0mm
Description Review
Description
Hydraulic Motor Driven C Purlin Forming Machine
C purlin roll forming machine has 2 types. one is manually changing size. another is automatic changing size within 2-5 minutes.
  C purlin roll forming machine speed can upto 0-30m per minute
  C purlin roll forming machine can work online punching
  C purlin roll forming machine spacers has 10mm 20mm 40mm and 60mm width
  Offered with the industry's best warranty
  No matter the material, the brand, language even the machine design, all can be customized


maquina para dobla perfiles c machine parameter
Item Parameter
Material Type Galvanized steel
Thickness 1.5-3.0mm
Machine material Active shaft No.45 steel tempered,φ70mm diameter,HRC treading and polishing
Roller No.45 steel chorme plated,heat treating,polishing,CNC machining two times Roughing and finishing
Cutting blade Cr12 quenched,polishing two times
Power requirement Type 380V/3PH/50HZ Customized
Main motor About 11Kw,china famous brand:shanghai li chao
Single motor our side
Hydraulic About 4Kw,china famous brand:shanghai li chao
Speed Forming speed Single 8-12m/min,speed can be adjusted by transducer
Manual decoiler Type Manual decoiler Expand by hand
Max capacity 5 tons
Suitable OD 500mm
Suitable ID 508mm
Max width 500mm
Forming stand 12steps roller forming L*W*H:6.0*0.8*1.2m
Type of cutting Length-set cutting
Guiding pipe
Hydraulic cutter
Each side one Oil cylinder
Main body:steel panel welding
Transmission 1.5inch drive GB stander
Control system Delta PLC& tansducer Touch screen (delta)
Side middle plate 16mm thickness steel GB stander
Main body Frame 350 H steel,Gb stander
Auto pre-cutting device Full automatic,setting any length in PLC,Hydraulic cutting system
Machine color Main body is sky blue color,cutting blade pillar is orange
Machine operating program Touch screen Delta
Machine weight About 4.3 tons

Standard Features


○ Purlin length is counted by Encoder.
○ Machine rollers is hard chromed, not easily broke the painting.
○ Hydraulic cutting blade tested by cutting the paper(no crash).
○ Machine is easy to use, only need input length and pieces by PLC.
○ Machine warranty is upto 24 months.

We have series kinds of roll forming machine. Such as Purlin Roll Forming Machine. Door Series Roll Forming Machine. Floor deck roll forming machine, Down spout gutter machine etc. Contact us Now for free quotation .
