Metal Roofing tile machine

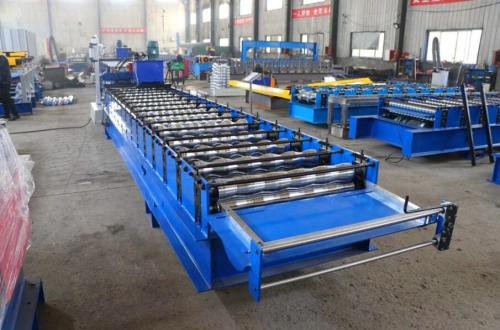

Roofing Glazed Tile Roll Forming Machine is a very famous tile profile which is widely used in Africa. As usual, the tiles will be covered with a compete polymer costing( Plastic Film). To protect the tile against corrosion, and make the roof durable.
| Coil Required |
Material |
PPGI GI AL |
| Width |
914/925/1000/1200/1220/1250mm |
| Thickness |
0.3-0.7mm as custom order |
| Power Required |
Power |
380V 50Hz 3 Phase, 220V, 415V available |
| Main Motor |
5.5KW Siemens Brand |
| Cutting Motor |
4KW Siemens Brand |
| Machine |
Support Frame |
40H Steel |

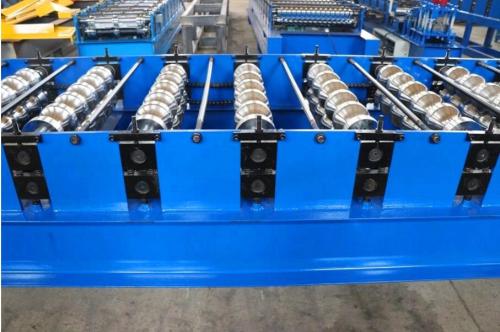

| Forming Stations |
14 Rows as profile require |
| Structure |
18-20mm |
| Shaft |
75mm Solid shaft |
| Roller |
45# Steel with hear treatment |
| Chain |
1.2inch |
| Bearings |
Standard as custom order |
| Speed |
15-3-m/min |
| Electric Components |
Delta and Siemens brand |
| Size |
7.5*1.3*1.6M |
| Weight |
4T |
Besides of Roof Tile Forming Machine, We also have
IBR sheet forming machine,
corrugated sheet forming machine, Ridge cap forming machine ,
Floor deck forming machine etc . Welcome to call us for more information .
