Metal Roofing Sheet

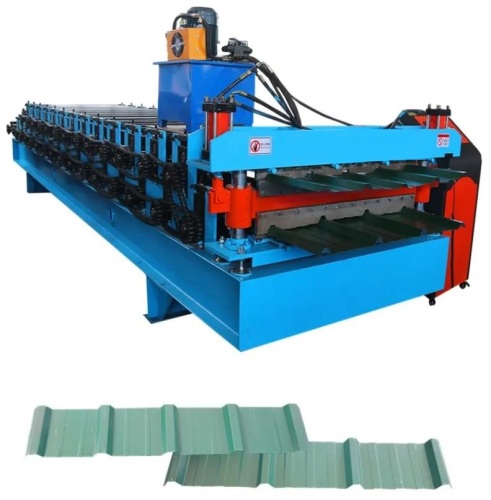

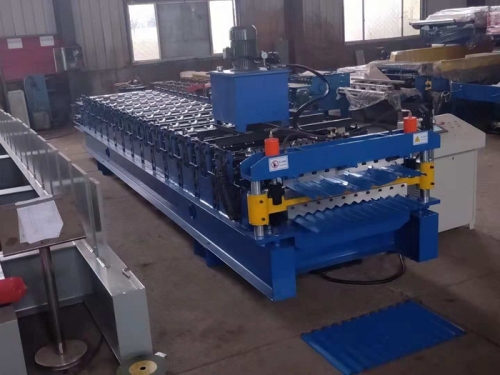

Double Layer Roll Forming Machine

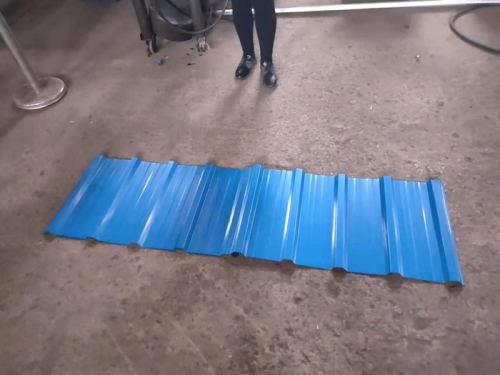

The machine have alternating bottom and upper stands. Rolls for one profile( like ibr sheeting ) are installed in the bottom stands, and rolls for another profile(like corrugated sheeting )are mounted on the upper stands. The whole line will use only one uncoiler, one cutoff unit, one controlled box. But the machine can’t produce the 2 profiles at the same time.
Coil Required |
Material |
PPGI GI AL |
Width |
914/925/1000/1200/1220/1250mm |
Thickness |
0.3-0.7mm as custom order |
Power Required |
Power |
380V 50Hz 3 Phase, 220V, 415V available |
Main Motor |
5.5KW Siemens Brand |
Cutting Motor |
4KW Siemens Brand |
Machine |
Support Frame |
40H Steel |
Forming Stations |
14 Rows as profile require |
Structure |
18-20mm |
Shaft |
75mm Solid shaft |
Roller |
45# Steel with hear treatment |
Chain |
1.2inch |
Bearings |
Standard as custom order |
Speed |
15-3-m/min |
Electric Components |
Delta and Siemens brand |
Size |
7.5*1.3*1.6M |
Weight |
6T |
Besides of Roof Tile Forming Machine, We also have
IBR sheet forming machine,
corrugated sheet forming machine, Ridge cap forming machine ,
Floor deck forming machine etc . Welcome to call us for more information .
