Metal Wall Panel Roll Forming Machine is used to produce wall panels automatically. The Machine can cutoff the wall panel profiles into desire length.
Metal Wall Panel(Roofing Sheets) is roll formed by common metal material with different sections. And also composite with heat insulation, water proof, sound absorption for a wide use. The material can be Galvanized steel, Pre-painted Galvanized Steel, Aluminum, Stainless Steel. The thickness is 0.2-0.8mm as usual.
Features and Advantages of
cladding wall panel making machine is specially designed for forming wall panel sheets and siding panels with various sizes and specifications under mass-production.
The production speed of our corrugated sheet machine ranges from 20 to 30m/min.
Similar to other roll forming machines , this wall panel forming machine series also have a cassette-type platform and quick-change machine base for selection.
Most wall panel forming machine models have ready machines in stock for prompt delivery.
Technical Parameters of Cladding wall panel making machine
Uncoiler Capacity: 5 Ton
Uncoiling Width: 600-1250mm
Material Thickness: 0.2-0.8mm
Main Motor Power: 7.5KW
Forming Stands: 16-26 Depends on profile design
Rollers Material: ASTM 1045, Chromed 0.05mm thickness
Shaft Material: ASTM 1045, 75mm OD
Hydraulic Power: 4KW
PLC Brand: Delta
The advantage of Wall panel sheet includes beautiful, classical appearance and grace taste.

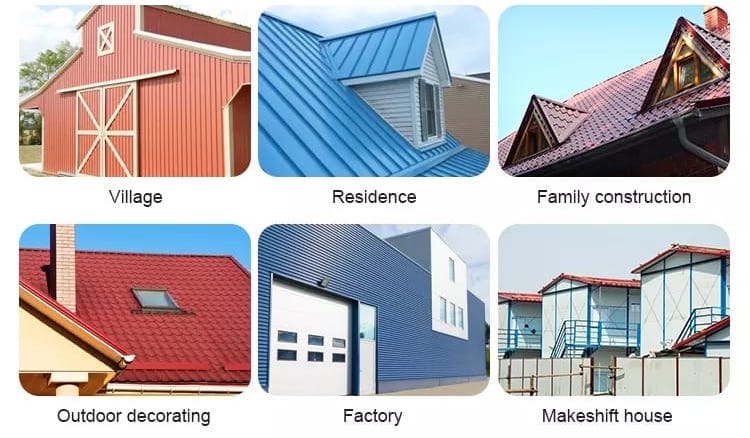

It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.
All roll forming machinery need 20~40 days production. Our Roll Forming Machines come with 2 years free warranty for main frame and control system . All machines will be made to customer personal requirements and profiles . Besides of Roll Forming Machine for Wall Panels, We also have roofing panel forming machine ,roofing tile machine, gutter forming machine and standing seam roll former etc . To request a quote or If you have any questions about our machines, please contact Rebecca at below :
